AIStore: an open system for petascale deep learning

So tell me, what do you truly desire?

                  Lucifer Morningstar


AIStore (or AIS) has been in development for more than three years so far and has accumulated a fairly long list of capabilities, all duly noted via release notes on the corresponding GitHub pages. At this stage, AIS meets common expectations to a storage solution – its usability, manageability, data protection, scalability and performance.

AIStore is a highly available partition-tolerant distributed system with n-way mirroring, erasure coding, and read-after-write consistency(*). But it is not purely – or not only – a storage system: it’ll shuffle user datasets and run custom extract-transform-load workloads. From its very inception, the idea was to provide an open-source, open-format software stack for AI apps – an ambitious undertaking that required incremental evolution via multiple internal releases and continuous refactoring…

AIS is lightweight, fully reliable storage that can be ad-hoc deployed, with or without Kubernetes, anywhere from a single Linux machine to a bare-metal cluster of any size. Prerequisites boil down to having a Linux and a disk. Getting started with AIS will take only a few minutes and can be done either by running a prebuilt all-in-one docker image or directly from the source.

AIS provides S3 and native APIs and can be deployed as fast storage (or a fast on-demand cache) in front of the 5 (five) supported backends (whereby AIS itself would be the number 6, respectively):


The focus on training apps and associated workloads results in a different set of optimization priorities and a different set of inevitable tradeoffs. Unlike most distributed storage systems, AIS does not break objects into uniform pieces – blocks, chunks, or fragments – with the corresponding metadata manifests stored separately (and with an elaborate datapath to manage all of the above and reassemble distributed pieces within each read request, which is also why the resulting latency is usually bounded by the slowest link in the corresponding flow chart).

Instead, AIS supports direct (compute <=> disk) I/O flows with the further focus on (re)sharding datasets prior to any workload that actually must perform – model training in the first place. The idea was to make a system that can easily run massive-parallel jobs converting small original files and/or existing shards to preferred sharded formats that the apps in question can readily and optimally consume. The result – linear scalability under random-read workloads, as in:

total-throughput = N * single-disk-throughput

where N is the total number of clustered disks.

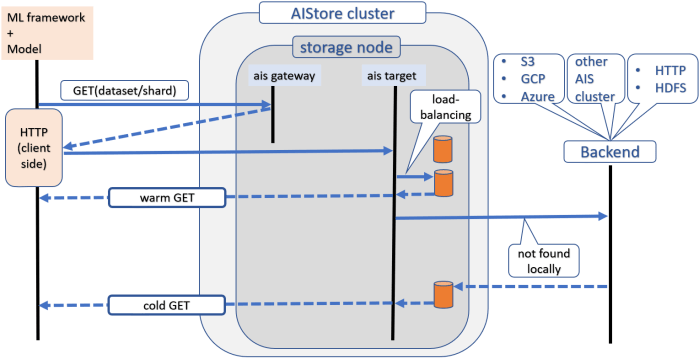

It is difficult to talk about a storage solution and not say a few words about actual I/O flows. Here’s a high-level READ diagram, which however does not show checksumming, self-healing, versioning, and scenarios (that also include operation in the presence of nodes and disks being added or removed):


You can always start small. As long as there’s HTTP connectivity, AIS clusters can see and operate on each other’s datasets. One can, therefore, start with a single all-in-one container or a single (virtual) machine – one cluster, one deployment at a time. The resulting global namespace is easily extensible via Cloud buckets and other supported backends. Paraphrasing the epigraph, the true desire is to run on commodity Linux servers, perform close-to-data user-defined transforms, and, of course, radically simplify training models at any scale.

Integrated Storage Stack for Training, Inference, and Transformations

The Problem

In the end, the choice, like the majority of important choices, comes down to a binary: either this or that. Either you go to storage, or you don’t. Either you cache a dataset in question (and then try to operate on the cache), or make the storage itself do the “operating.”

That’s binary, and that’s the bottom line.

Of course, I’m talking about ETL workloads. Machine learning has three, and only three, distinct workloads that are known at the time of this writing. And ETL is the number one.

[ Full disclosure: the other two include model training and hyperparameter optimization ]

ETL – or you can simply say “data preprocessing” because that’s what it is (my advice, though, if I may, would be to say “ETL” as it may help institute a sense of shared values, etc.) – in short, ETL is something that is usually done prior to training.

Examples? Well, ask a random person to name a fruit, and you’ll promptly hear back “an apple.” Similarly, ask anyone to name an ETL workload, and many, maybe most, will immediately respond with “augmentation”. Which in and of itself is a shortcut for a bunch of concrete sprightly verbs: flip, rotate, scale, crop, and more.

My point? My point is, and always will be, that any model – and any deep-learning neural network, in particular – is only as good as the data you feed into it. That’s why they flip and rotate and what-not. And that’s precisely why they augment or, more specifically, extract-transform-load, raw datasets commonly used to train deep learning classifiers. Preprocess, train, and repeat. Reprocess, retrain, and compare the resulting mAP (for instance). And so on.

Moreover, deep-learning over large datasets features the proverbial 3 V’s, 4 V’s, and some will even say 5 V’s, of the Big Data. That’s a lot of V’s, by the way! Popular examples include YouTube-8M, YouTube-100M, and HowTo100M. Many more examples are also named here and here.

Very few companies can routinely compute over those (yes, extremely popular) datasets. In US, you can count them all on the fingers of one hand. They all use proprietary wherewithal. In other words, there’s a problem that exists, is singularly challenging and, for all intents and purposes, unresolved.

After all, a 100 million YouTube videos is a 100 million YouTube videos – you cannot bring them all over to your machine. You cannot easily replicate 100 million YouTube videos.

And finally – before you ask – about caching. The usual, well-respected and time-honored, approach to cache the most frequently (recently) used subset of a dataset won’t work. There’s no such thing as “the most” – every single image and every second of every single video is equally and randomly accessed by a model-in-training.

Which circles me all the way back to where I’d started: the choice. The answer at this point appears to be intuitive: storage system must operate in place and in parallel. In particular, it must run user-defined ETLs on (and by) the cluster itself.


AIStore (or AIS) is a reliable distributed storage solution that can be deployed on any commodity hardware, can run user containers and functions to transform datasets inline (on the fly) and offline, scales linearly with no limitations.

AIStore is not gen-purpose storage. Rather, it is a fully-reliable extremely-lightweight object store designed from the ground up to serve as a foundation for an integrated hyper-converged stack with a focus on deep learning.

In the 3+ years the system has been in development, it has accumulated a long list of features and capabilities, all duly noted via release notes on the corresponding GitHub pages. At this stage AIS meets most common expectations in re usability, manageability, and data protection.

AIS is an elastic cluster that grows and shrinks with no downtime and can be easily-and-quickly deployed, with or without Kubernetes, anywhere from a single machine to a bare-metal cluster of any size. For Kubernetes-based deployments, there’s a whole separate repository that contains AIS deployment playbooks, Helm charts, and Kubernetes Operator.

The system features data protection and self-healing capabilities that users come to normally expect nowadays. But it can also be used as fast ad-hoc cache in front of the five (so far) supported backends, with AIS itself being the number six.

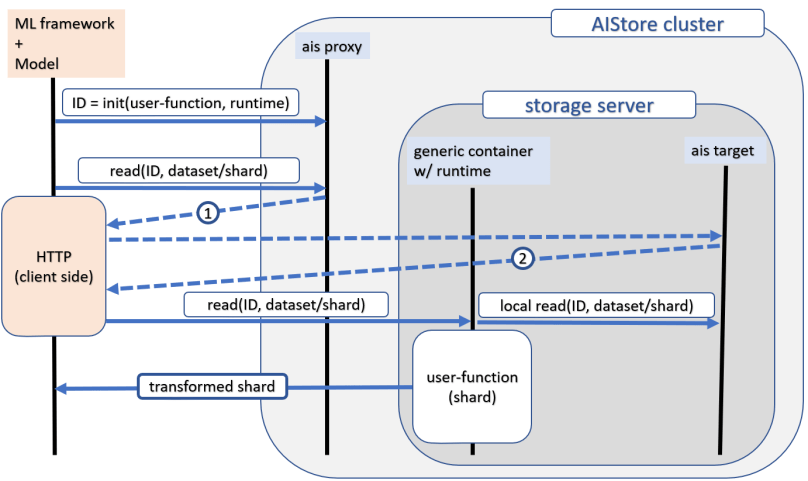

The picture below illustrates inline transformation, whereby each shard from a given distributed dataset gets transformed in-place by a user-provided function. It goes as follows:

  1. A user initiates custom transformation by executing documented REST APIs and providing either a docker image (that we can pull) or a transforming function that we further run using one of the pre-built runtimes;
  2. The API call triggers simultaneous deployment of multiple ETL containers (i.e., K8s pods) across the entire cluster: one container alongside each AIS target;
  3. Client-side application (e.g., PyTorch or TensorFlow-based training model) starts randomly reading sharded samples from a given dataset;
  4. Each read request:
    • quickly bounces off via HTTP redirect – first, of an AIS proxy (gateway) and, second, of AIS target – reaching its designated destination – the ETL container that happens to be “local” to the requested shard, after which:
    • the container performs local reading of the shard, applies user-provided transforming function to the latter, and, finally, responds inline to the original read request with the transformed bytes.


The sequence above is one of the many supported permutations that also include:

  • User-defined transformation via:
    • ETL container that runs HTTP server and implements one of the supported APIs, or
    • user function that we run ourselves given one of the supported runtimes;
  • AIS target <=> ETL container communication via:
    • HTTP redirect – as shown in the picture, or
    • AIS target performing the read and “pushing” read bytes into locally deployed ETL to further get back transformed bytes and respond to the original request.

And more. Offline – input dataset => output dataset – transformation is also available. A reverse-proxy option is supported as well, although not recommended.


In the end, the choice, like so many important choices we make, is binary. But it is good to know what can be done and what’s already actually working.
